Harmar Pinnacle Stair Lift, 300 lb.


Harmar Pinnacle Stair Lift, 300 lb.

Additional Images

Shown In Use

Harmar Pinnacle Stair Lift, 300 lb.

by Harmar Mobility

$3,515.00
Plus Shipping
Free Shipping!
Single Issue Coupon
Product Review
(0)
(0)

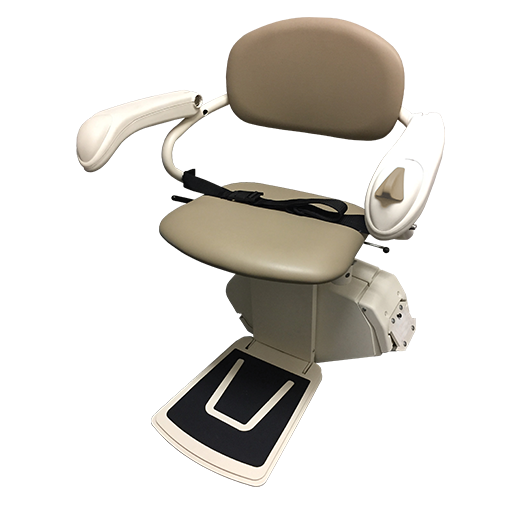

The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.

The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.

* CT, MI and WA customers please check your local inspection regulations for stair lifts.

Drive TypePolymer Worm / Worm-Rack
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity300 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Seat Width19"
Seat Depth16"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, Folded11"
Rail Angle, Min32°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockYes
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Track Lengths Selection: 15' (180") is Standard *

    • option_name
      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
      spacer
    • No Image
      15' (180") of Track
      $0.00
      spacer
    • No Image
      Length in inches if Shorter than 180" (allow +7" for entry/exit)
      $0.00
      spacer
  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • No Image
      Up to 3' of Additional Track
      $250.00
      spacer
    • No Image
      Up to 5' of Additional Track
      $393.00
      spacer
    • No Image
      Up to 7'9" (93") of Additional Track
      $536.00
      spacer
  • Additional Brackets (comes with standard)

    • No Image
      Standard Brackets
      $29.00
      spacer
    • No Image
      Tall Brackets
      $29.00
      spacer
  • Options

    • No Image
      Track Cut to Custom Length (Required for any track cut)
      $143.00
      spacer
    • No Image
      Chassis Obstruction Sensors
      $108.00
      spacer
    • No Image
      Key Lock on Chasis
      $143.00
      spacer
    • No Image
      Seatbelt Extension
      $100.00
      spacer
    • No Image
      Manual Lowering Tool
      $50.00
      spacer
    • No Image
      Folding Rail - Left Hand
      $1,795.00
      spacer
    • No Image
      Folding Rail - Right Hand
      $1,795.00
      spacer
  • Power Options

    • No Image
      No Power Options
      $0.00
      spacer
    • No Image
      Power Swivel (temporarily out of stock)
      $860.00
      spacer
    • No Image
      Power Footrest
      $795.00
      spacer
    • No Image
      Power Swivel and Power Footrest (temporarily out of stock)
      $1,490.00
      spacer
  • Call Stations

    • No Image
      Top & Bottom Call-Send Stations
      $0.00
      spacer
  • Orientation (looking UP the staircase)

    • No Image
      The stair lift will be on the left
      $0.00
      spacer
    • No Image
      The stair lift will be on the right
      $0.00
      spacer
  • Installation

    • No Image
      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      $0.00
      spacer
    • No Image
      Self Installation
      $0.00
      spacer
    • No Image
      Nationwide Installation
      $599.00
      spacer
    • No Image
      Nationwide Installation and Measurement Service
      $749.00
      spacer
    • No Image
      Double Stair Lift Installation Service - Per Stair Lift
      $875.00
      spacer
    • No Image
      Stair Lift Removal and Disposal
      $499.00
      spacer
  • Installation Special Cases

    • No Image
      Installation On Concrete, Steel, or Tile Stairs
      $300.00
      spacer
    • No Image
      Installation In Remote or Limited Access Location
      $285.00
      spacer
  • Measurements

    • No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
      spacer
    • No Image
      1. Overall length
      $0.00
      spacer
    • No Image
      2. Top stair to bottom stair
      $0.00
      spacer
    • No Image
      3. Staircase width
      $0.00
      spacer
    • No Image
      4. Bottom clearance
      $0.00
      spacer
    • No Image
      5. Rise of one step
      $0.00
      spacer
    • No Image
      6. Tread of one step
      $0.00
      spacer
    • No Image
      7. Diagonal
      $0.00
      spacer
    • No Image
      8. Door at the top
      $0.00
      spacer
    • No Image
      Need help measuring? Please see our "How to Measure" page.
