How to Measure


Don't be intimidated by measuring your staircase for a stair lift - the process is actually pretty easy, and doing this step yourself can save you both time and money on a stair lift installation. Just follow these eight simple steps, and then call our stair lift experts to order your new lift!

For more information regarding our Stair Lift Return Policy

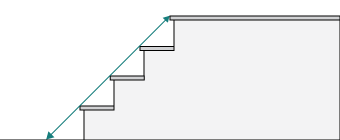

Stair Lift Measuring Step 1


Measure your stairs in a straight line from the front edge of the top landing to the floor beneath the bottom step. Don't allow the measuring tape to sag!

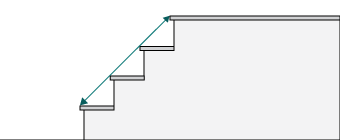

Stair Lift Measuring Step 2


Now, measure the same line, but only from the edge of the top landing to the front edge of the bottom step.

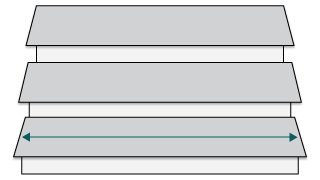

Stair Lift Measuring Step 3


Next, measure the width of a single step. Only measure the usable width - don't stretch the tape beyond any guard rails or bannisters on the side of the stairs..

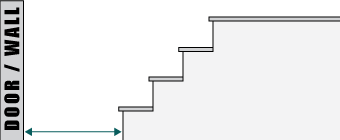

Stair Lift Measuring Step 4


Measure the distance from the end of the bottom step to the nearest opposite wall, door, or obstruction.
Stair Lift Measuring Step 5


This one's easy: measure the height of a single step from top to bottom.
Stair Lift Measuring Step 6


Another easy one: measure the length of a single stair from front to back.
Stair Lift Measuring Step 7


Measure from the front edge of one step to the fornt edge of a step beneath it. This helps us to geometrically verify the previous two measurements.

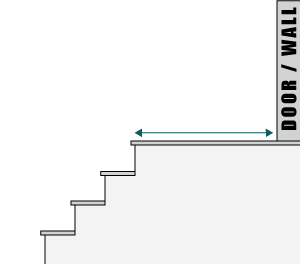

Stair Lift Measuring Step 8


Finally, measure from the edge of the top step to the nearest door, wall, or obstruction much as you did in step 4. You're all done!
