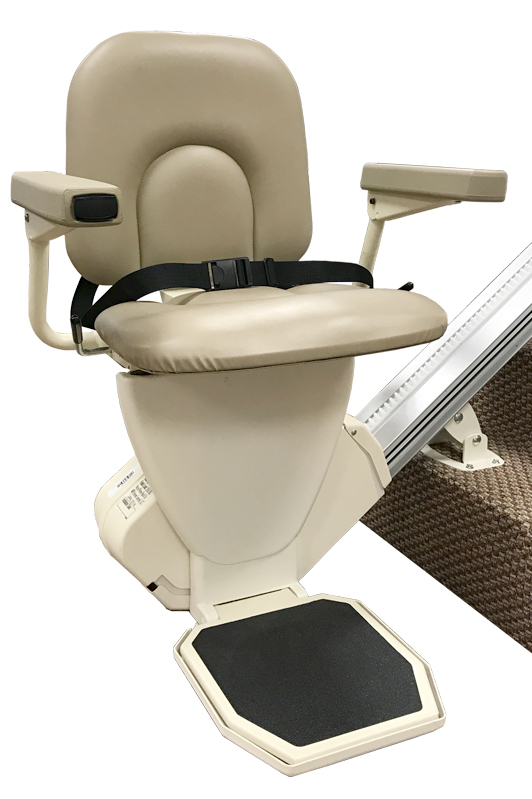

AmeriGlide Rave Stair Lift
by AmeriGlide
The AmeriGlide Rave is an ultra-thin line stair lift unit specially designed to help homeowners save space on narrow stair cases. When folded up, the Rave takes up less than a foot of space, so able-bodied housemates and guests can navigate around it easily. The all-metal casing for the rack and pinion drive system ensures durability and long-lasting performance despite normal wear and tear from daily use, and the Rave stair lift can transport up to 350 pounds of user weight. A comfortable adjustable-height padded seat ensures user comfort during lift trips, and safety switches on the base of the lift unit make the Rave perfectly safe for homes where children and pets are a fact of life. The Rave is also easier to install than many of our competitors' products, because the track mounts directly to your stairs instead of to the wall, using only one bracket at each point of contact. The AmeriGlide Rave operates via any household outlet and keeps a reserve charge to allow you to get to safety in an emergency, even if your power goes out. Call a mobility specialist today to order your own AmeriGlide Rave stairlift!
* CT and WA customers please check your local inspection regulations for stair lifts.
| Drive Type | Rack & Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 16' |
| Max Track Length, Optional | 32' |
| Track Material | Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Unit Footprint, In Use | 22.5" |
| Unit Footprint, Folded | 10" |
| Track Footprint | 7" |
| Warranty | A 5-year period on all component parts of the lift, and a 10-year period on the motor and gear. |
| Track Width | 4.875" |
| Call Stations Included | Yes - Wireless |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
-
Seat Style
Soft Vinyl Seat - Taupe$0.00
-
Track Length
-
Up to 16' of track$0.00
-
Extra Track, Per Foot, Up To 16' Extra$50.00
-
Options
-
Seat Belt$0.00
-
Call Stations
-
Top & Bottom Call-Send Stations$0.00
-
Orientation (looking UP the staircase)
-
The stair lift will be on the left$0.00
-
The stair lift will be on the right$0.00
-
Installation
-
Self Installation$0.00
Nationwide Installation$575.00
Nationwide Installation and Measurement Service$725.00
-
Installation Special Cases
-
Installation On Concrete, Steel, or Tile Stairs$300.00
-
Installation In Remote or Limited Access Location$285.00
-
Measurements
-
Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
-
1. Overall length$0.00
-
2. Top stair to bottom stair$0.00
-
3. Staircase width$0.00
-
4. Bottom clearance$0.00
-
5. Rise of one step$0.00
-
6. Tread of one step$0.00
-
7. Diagonal$0.00
-
8. Door at the top$0.00
-
Need help measuring? Print out the "How to Measure" worksheet.$0.00
This product currently has no reviews. Would you like to leave one?
